OEM Excavator Hydraulic Grapple For PC234 23t Heavy Duty Wood Grapple

Name: OEM Excavator Hydraulic Grapple For PC234 23t Heavy Duty Wood Grapple
Brand: Huitong
Price: 15850 USD

Wholesale OEM Excavator Hydraulic Grapple For PC234 23t Heavy Duty Wood Grapple from china suppliers

Brand Name : Huitong

Model Number : Huitong333

Place of Origin : GUA

MOQ : 1

Price : 15850

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 7-15days

Packing : Standar Packing

Material : Q355B

Quality : High Guarantee

Service : 24 Hours Online

Suitable : 1-50t Excavator

Type : Mechanical

Contact Now

OEM Manufacturer Excavator Hydraulic Grapple for PC234-23t Excavator Attachments Heavy Duty wood grapple excavator

PRODUCT PARAMETERS

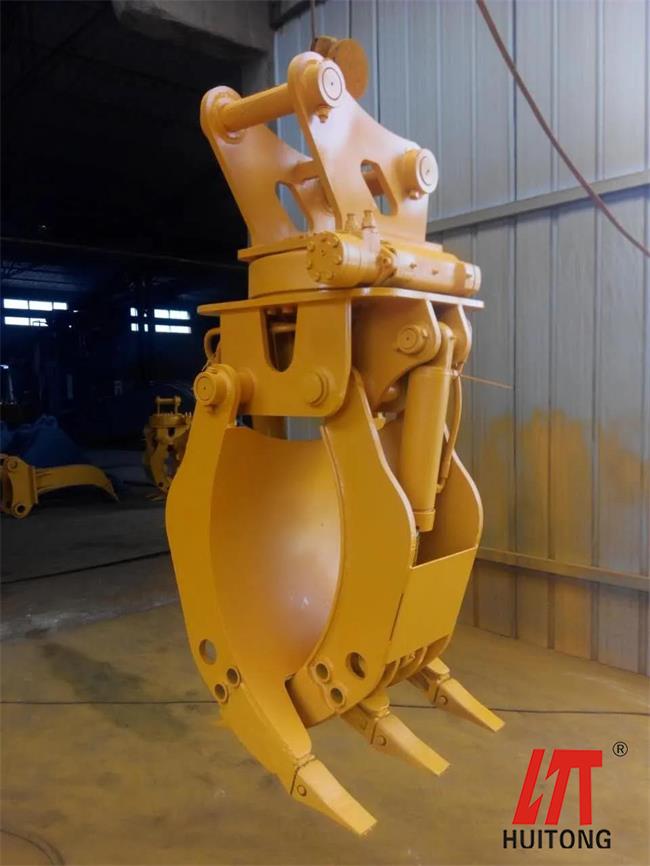

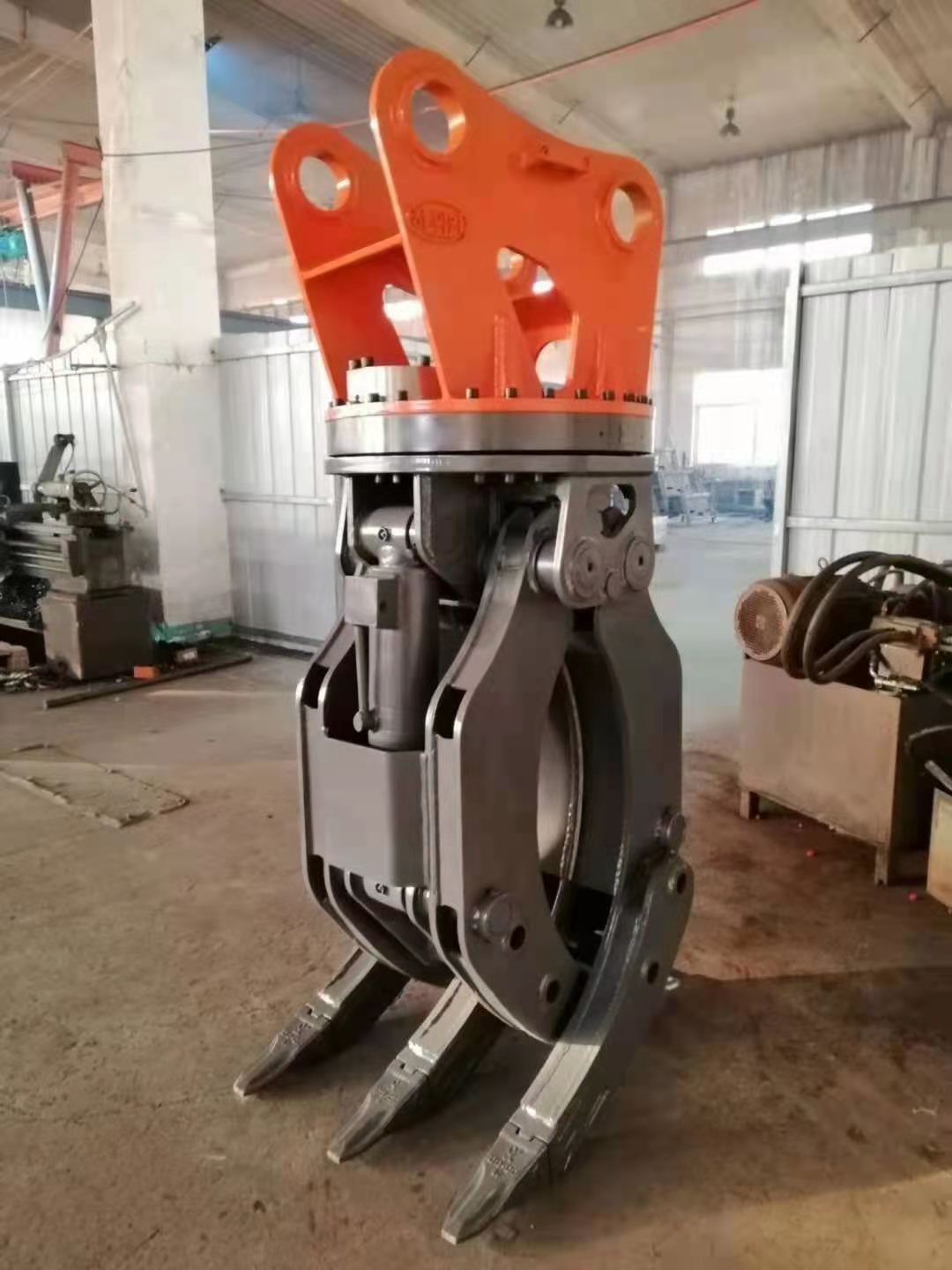

Excavator Rotating Grapple

HT Grapple also called plum grapples, grasping forceps , hydraulic claws , grasping steel device. Both rotating and non-rotating types are available.

HT Excavator Rotating Grapple, also called "Excavator Log Grab, Timber Grab", adopts Q690 High Strength Steel and advance rotating motor. 360-degree clockwise or anticlockwise rotation and the rotation speed can be controlled by operator, special rotary gears are used to prolong lifespan and lower the cost, fit for all operations where there need grappling and loading, such as stone, timber, waste, tube operations, garden and stone laying projects.
PRODUCT APPLIPCION
  	 			Excavator Rotating Grapple

 			Machine Tonnage
 			Description
 			Max.Opening ranging(in)
 			Weight(lbs)
 			Material

 			6-10T
 			Rotating/non-rotating
 			57.1
 			1430/1562
 			Q690+NM360

 			11-16T
 			Rotating/non-rotating
 			66.9
 			1760/1914
 			Q690+NM360

 			17-20T
 			Rotating/non-rotating
 			74.8
 			2134/2310
 			Q690+NM360

 			21-24T
 			Rotating/non-rotating
 			80.7
 			2354/2530
 			Q690+NM360

 			25-30T
 			Rotating/non-rotating
 			86.6
 			2640/2860
 			Q690+NM360

 			31-35T
 			Rotating/non-rotating
 			90.6
 			3080/3344
 			Q690+NM360

 			36-40T
 			Rotating/non-rotating
 			94.5
 			3630/3938
 			Q690+NM360

 			41-45T
 			Rotating/non-rotating
 			98.4
 			4268/4620
 			Q690+NM360

 			65T
 			Rotating/non-rotating
 			98.4
 			8140/9240
 			Q690+NM360



PRODUCT FEATURES

1. Material:

1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440
 BHN. Instead of traditional Q355b.

2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating


2. Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
 3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
 Moment Torque 26kN.m-203kN.m(150,000lbf.ft)
3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
 of the product on the market needed greasing everyday) and better protect the product.
 2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
 3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with Q345(normally used on the market)
